A CTFd container plugin that fits on one machine

I help run the CTF at my university. The setup is small: one server, a few volunteers, and no budget for a Kubernetes cluster. Every team plays the same challenges, so each team needs its own copy of the vulnerable service, and no team should be able to read another team’s flag.

I looked at the existing options and ran into a gap. The simple plugins do not track flags per team, and the larger frameworks ask for infrastructure we do not have.

Background

The plugin most people start from is andyjsmith’s CTFd-Docker-Plugin. It does the basic job, but the last commit is from 2022 and I wanted per-team flags and some visibility into what was happening on the host.

At the other end, CTFd-Whale expects a Docker Swarm cluster and an frp relay. CTFd-owl is built around docker-compose. rCTF runs a separate instancer service, and kCTF assumes Kubernetes and nsjail.

All of those are reasonable choices when you have hundreds of teams and the infrastructure to match. We had one machine and around 40 teams, so I wrote a plugin that runs inside CTFd, talks to the Docker socket, and does not need anything else. It is a fork of andyjsmith’s plugin, though most of the code has been rewritten since.

How it works

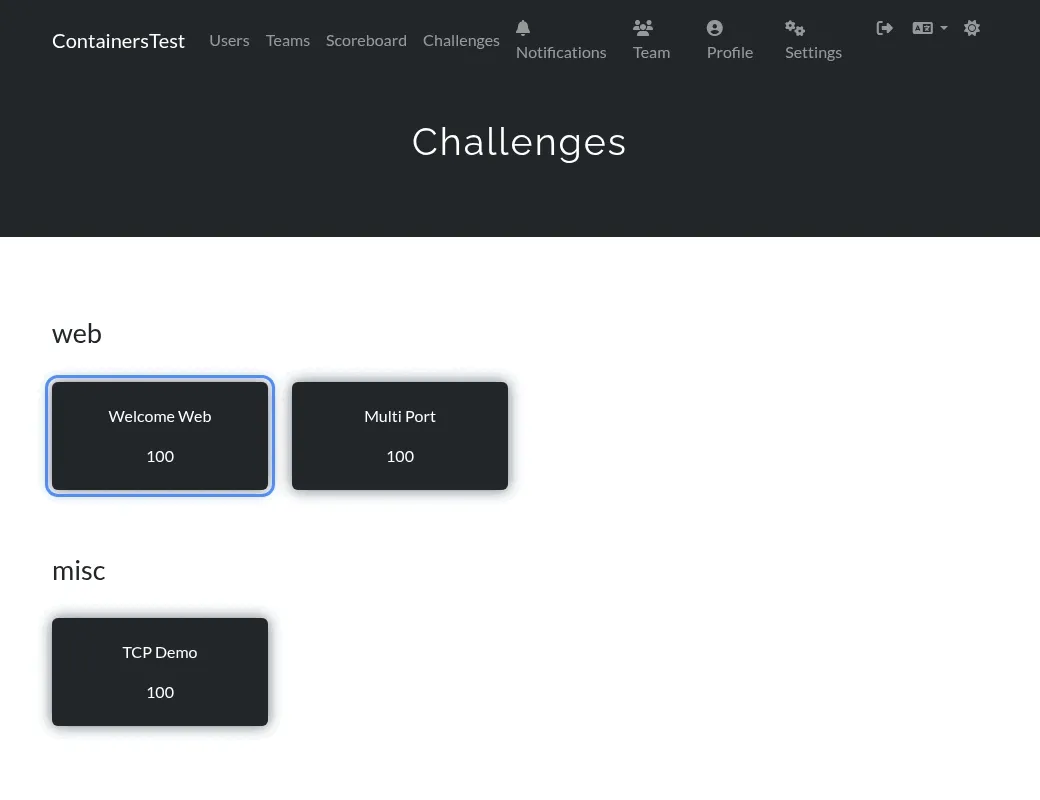

A player opens a challenge and clicks a button.

The plugin then builds a container from the challenge image, gives it a flag that no other team has, publishes the ports, and records the expiry. When the timer runs out, or when the player submits the correct flag, the container is removed and the port returns to the pool.

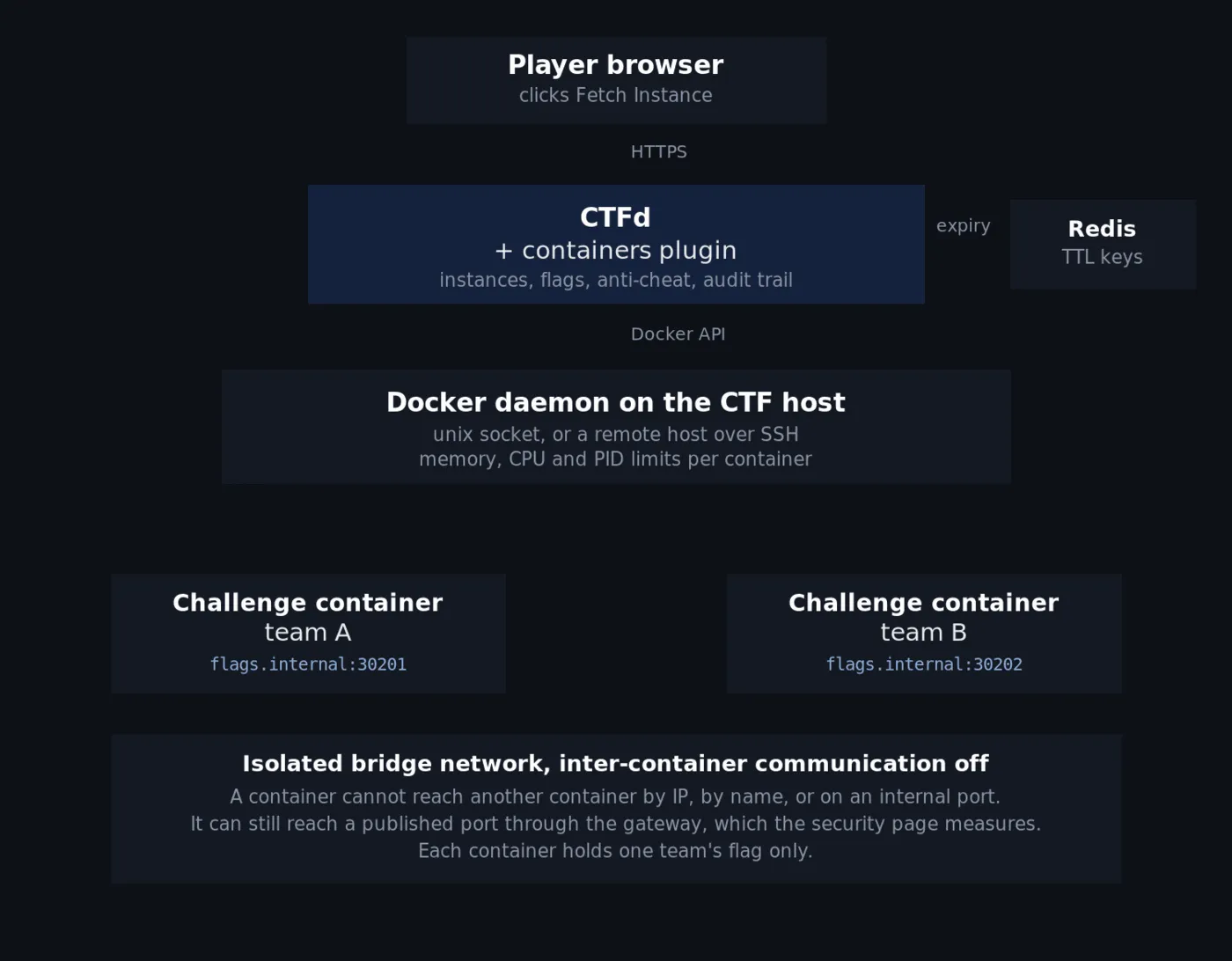

The whole system is one CTFd process and one Docker socket:

If you can mount /var/run/docker.sock into your CTFd container, you can run this.

Expiry uses two mechanisms. Redis keyspace notifications stop the container at the second its key expires. A job also runs every 30 seconds and stops anything past its expiry. The first gives accuracy, and the second means a missed Redis event, or no Redis at all, does not leave containers running.

Setup

It comes down to two volumes and a Redis flag.

1
services:
2
  ctfd:
3
    build:
4
      context: .
5
      dockerfile: docker/Dockerfile   # installs the plugin's own requirements
6
    user: root
7
    volumes:
8
      - /var/run/docker.sock:/var/run/docker.sock
9
      - ./CTFd-Docker-Plugin:/opt/CTFd/CTFd/plugins/containers
10

11
  cache:
12
    image: redis:4
13
    command: redis-server --notify-keyspace-events Ex --appendonly yes

Build with docker compose up -d --build so the dependencies are installed. Then open the console, set the connection hostname to an address your players can reach, and create a challenge of type container.

Two things that took me longer than they should have. The plugin imports docker, apscheduler, openpyxl and paramiko when it loads, and none of them are in the stock CTFd image, so a bind mount alone is not enough. And the connection hostname should not be the CTFd hostname, because browsers send cookies to every port on a hostname, so a challenge with a remote code execution bug could read a player’s CTFd session cookie. A separate subdomain or a separate IP avoids that.

The full install guide is at ctfd-docker-plugin.phannhat.com, so I will not repeat it here.

Each team gets a flag that only exists for them. When a flag is submitted, the plugin looks it up within that challenge and then checks who owns it. There are three outcomes:

Outcome	Condition	What the player sees
Correct	The flag belongs to this team	Solved
Expired	The flag exists but its container expired	`This flag has expired`
Another team’s	The flag belongs to a different team	`Incorrect`

The third row is the one I care about. The player is not told anything about it.

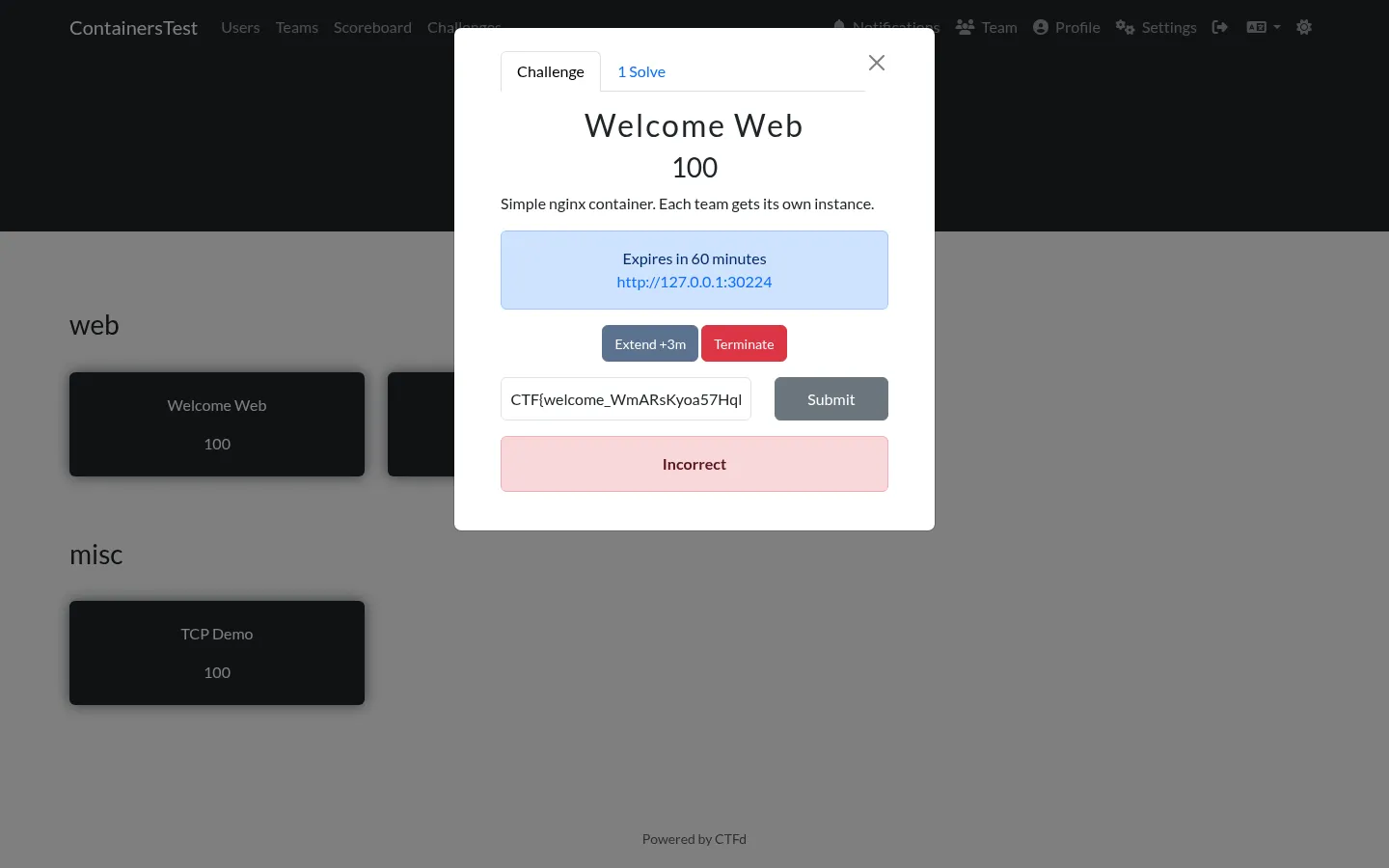

In this screenshot, team-blue has its own running instance on port 30224 and submits the flag that belongs to team-red. The response is the same red Incorrect as any wrong guess, with nothing to indicate that the flag was recognised as someone else’s.

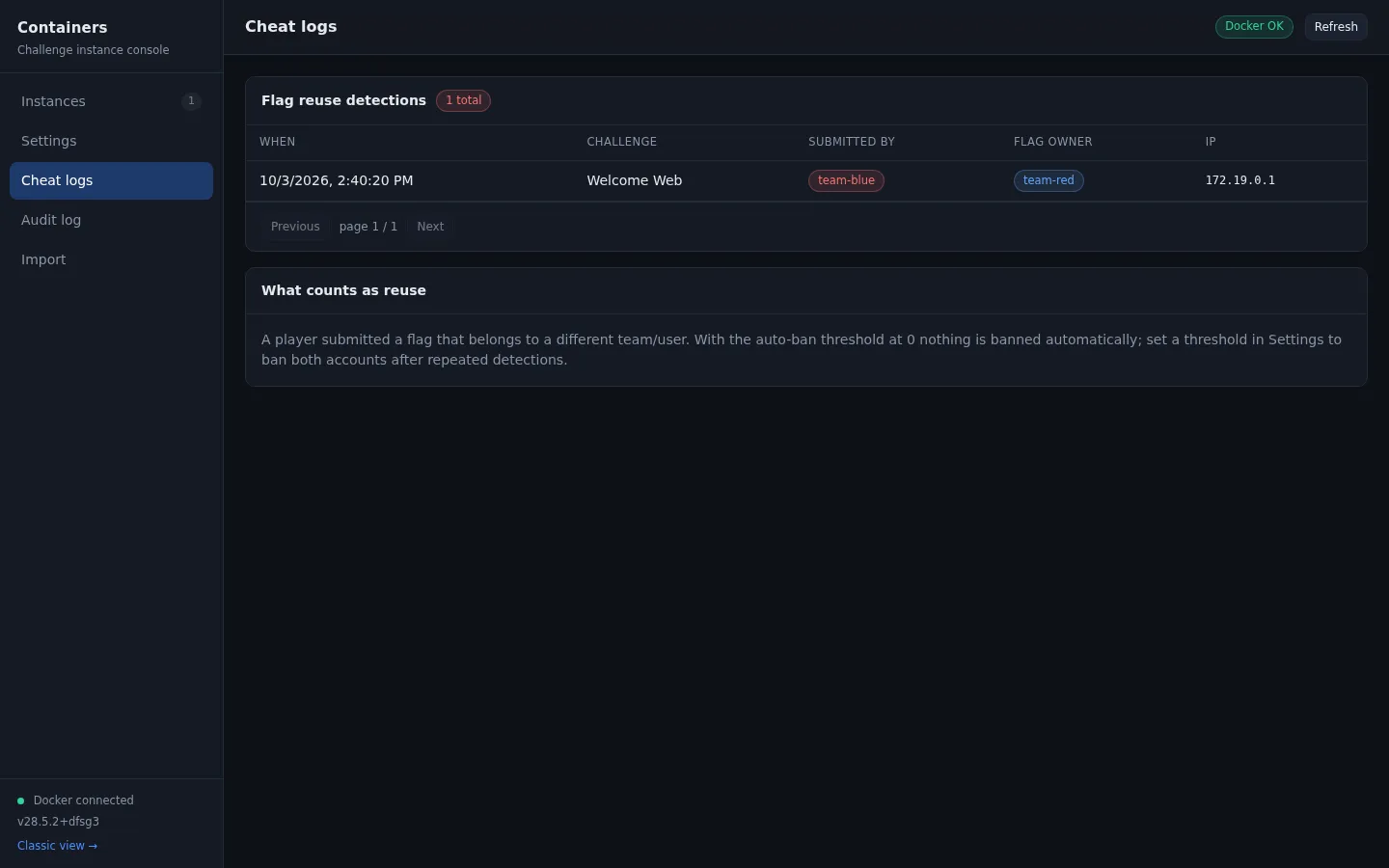

The organisers get the full picture:

Timestamp, challenge, submitting team, flag owner, and source IP. Each detection also writes an audit entry with a severity and the action taken.

Flag sharing is common in small CTFs and it is hard to notice otherwise. In a normal CTFd install, if two teams sit next to each other and one of them solves a challenge, nothing records that the flag was copied. Here, the second submission appears in a log with both team names attached.

Auto-ban is off by default

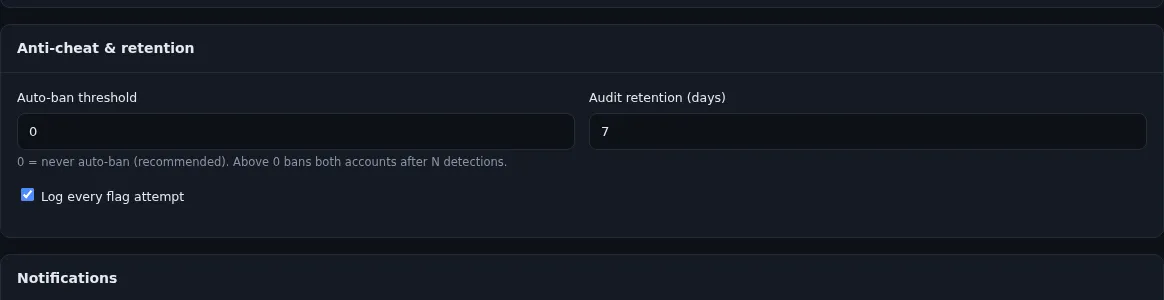

There is a setting called Auto-ban threshold, and it is 0 by default, which means nobody is banned automatically.

My first version did the opposite. It banned both the submitting team and the flag owner on the first detection.

The problem is that obtaining one valid flag is not difficult, and submitting it is a single request. With instant banning, anyone could submit someone else’s flag on purpose and get that team banned, and the team would have no way to know why. During a live event that is costly for the wrong team.

So the default is now to log and alert only. If you want automatic bans, set the threshold to 3 or more, so a single submission does not trigger one. The log is usually enough on its own, and it leaves the decision with the organiser.

The admin console

The console is where I spend most of the event.

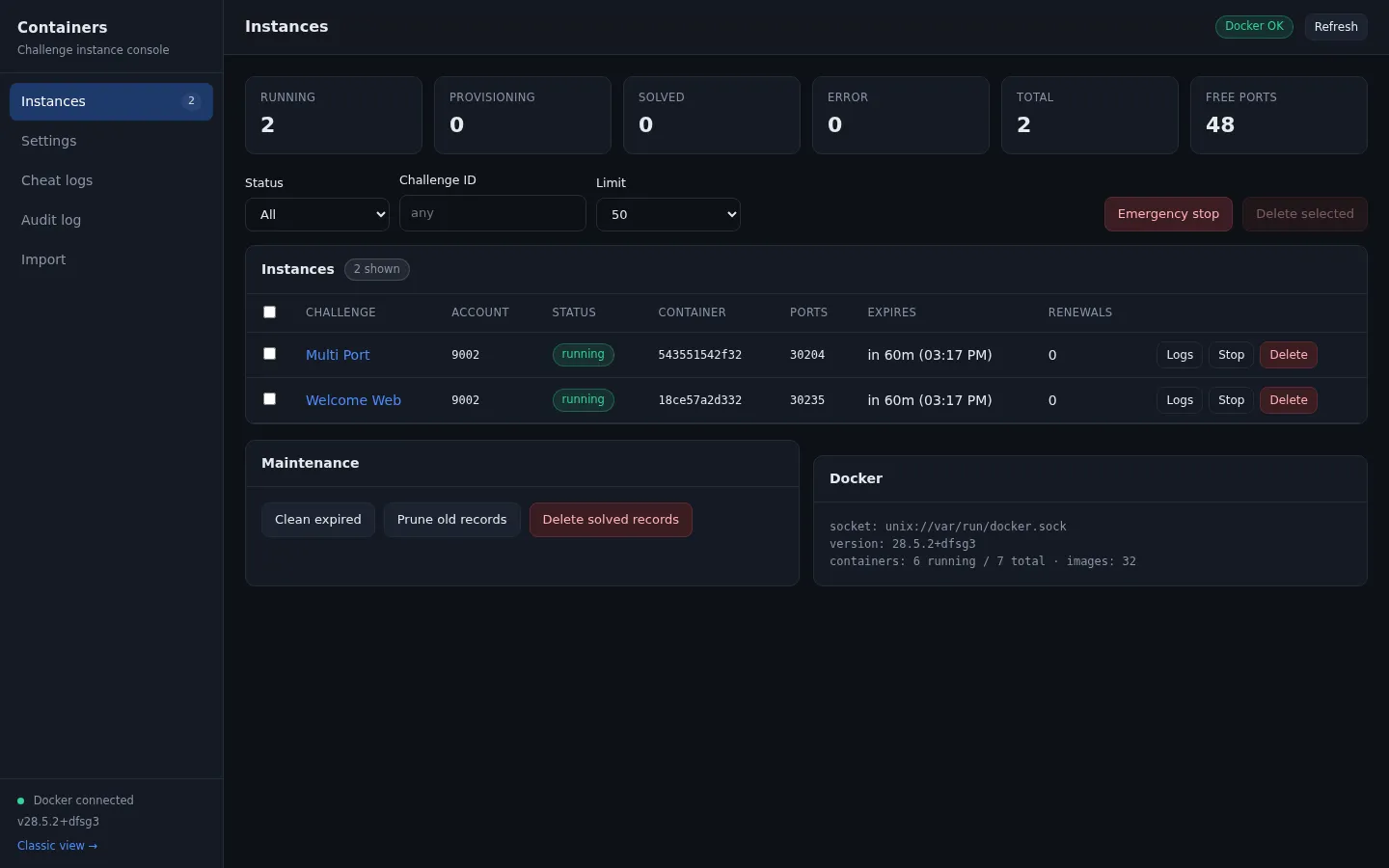

It shows counts per status, how many ports are still free, and a table of every instance with its container, port and expiry. From there I can read a challenge’s container logs, stop a single instance, or stop everything if something goes wrong.

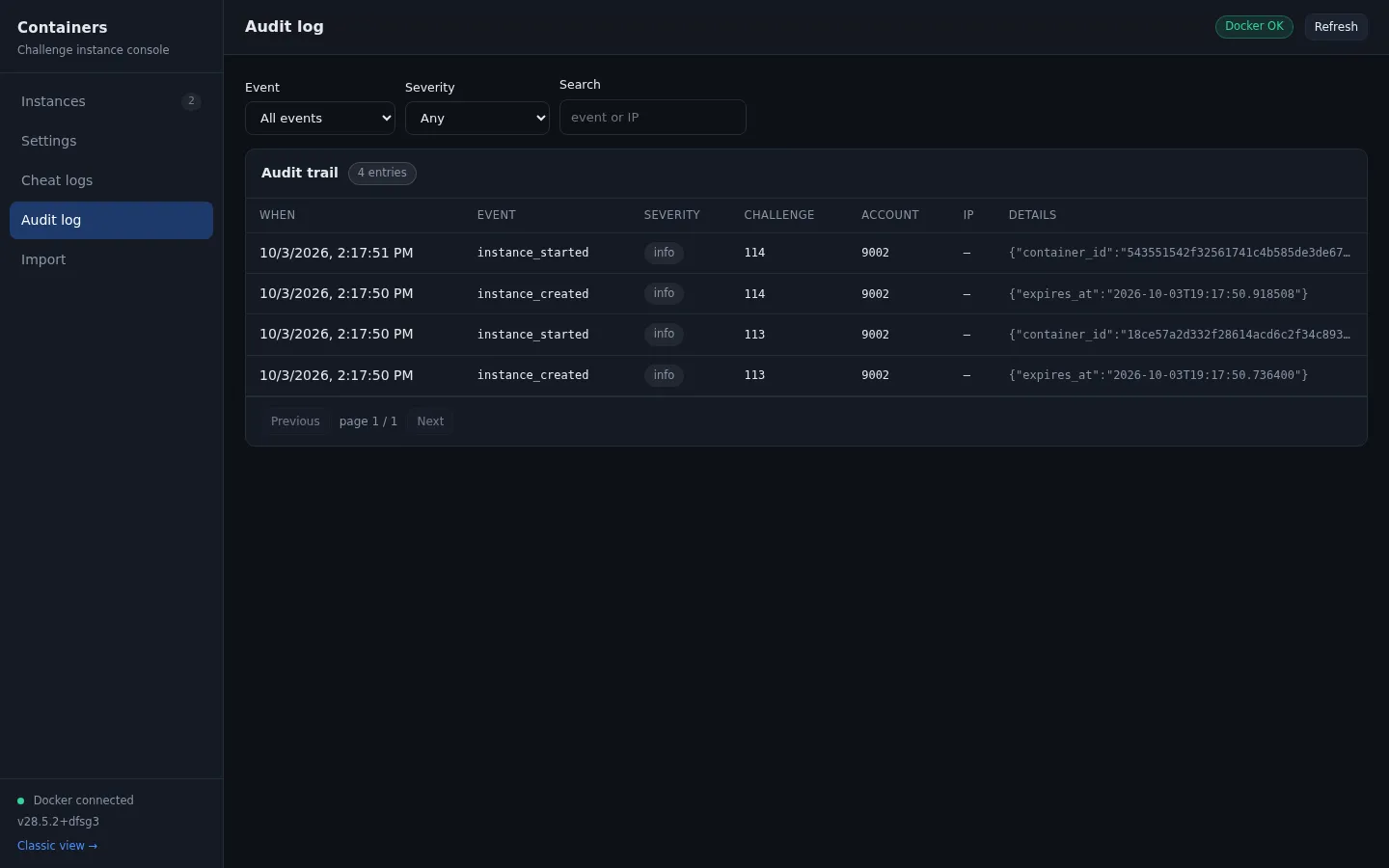

The tab I use more than I expected is the audit trail:

Every lifecycle event is stored with a severity and a JSON payload, so “why did that container stop” and “who removed it” both have answers. I only added the viewer because the data was already being written and there was no way to read it.

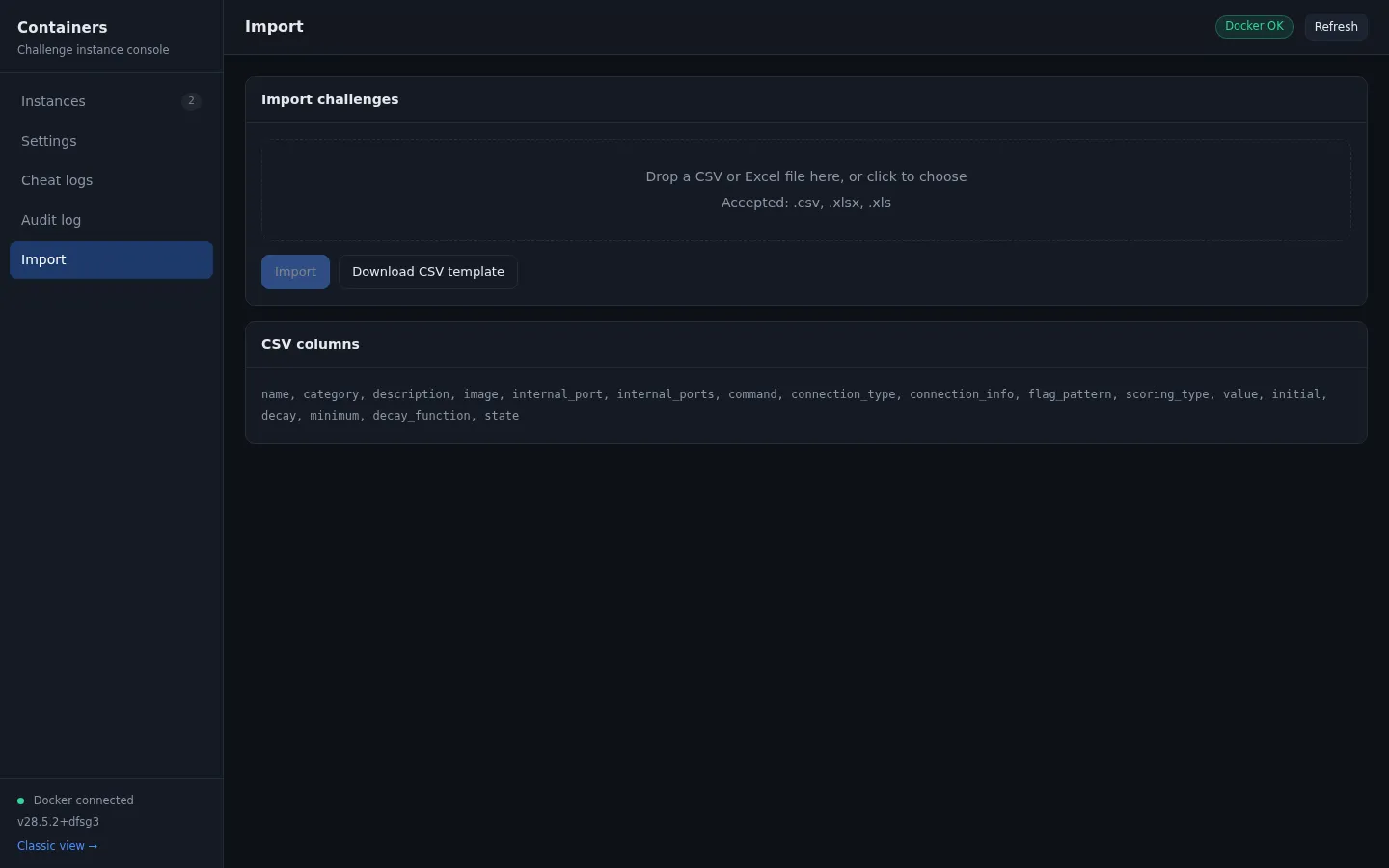

There is also a CSV import for creating a whole category at once, which helps on the day you set up 40 challenges.

Limitations

A few things to know before deploying it.

Warning (Where the isolation stops)

A container cannot reach another container directly. I tested this: no connection by IP, by container name, or on an internal port, and ARP spoofing is blocked because the container has no CAP_NET_RAW. But a published port is still reachable through the bridge gateway, and Docker’s embedded DNS lists every container name on the network. A team with code execution in their own container can reach another team’s published port if they find the number. For a static service that makes no difference. For a challenge with private mutable state, such as a database or a per-team file upload, it does.

The rest of the list:

One Docker host. There is no scheduler across machines and no per-host port partitioning.
Provisioning blocks the request. Fetch Instance does not return until the container is running, so a slow image pull keeps the request open. With local images this is under a second.
Resource limits are global. Memory, CPU and the process limit apply to every container, so one heavy challenge cannot be given more memory than the rest.
No multi-container challenges. If a challenge needs a web app plus a database, CTFd-owl or rCTF is the better fit.
No admin bot for web challenges.
The tests are recent, so they have not seen as many events as rCTF’s or kCTF’s.

The comparison page covers the other plugins and frameworks in more detail, including where each of them is stronger.

When to use it

For one server and a few dozen teams, this plugin covers per-team containers and flag sharing detection with very little setup. That is the case it was written for.

For a larger event, or for challenges whose images you do not fully trust, rCTF or kCTF are the better fit. The extra setup buys real isolation, and that trade is worth making at that size.

The plugin is at phannhat17/CTFd-Docker-Plugin, MIT licensed, with the docs at ctfd-docker-plugin.phannhat.com. If something does not work, open an issue or send me a message.
